در اوراکل 23ai می توانیم از طریق اجرای gridSetup.sh و به صورت ویزاردی بر روی نرم افزار گرید، patch اعمال کنیم این کار به صورت Zero-Downtime هم قابل انجام است. در متن پیش رو قصد داریم Release Update 23.6 را بر روی  Grid Infrastructure 23.5 اعمال کنیم.

در حال حاضر 23.5 Grid Infrastructure در حال اجرا است:

[grid@OL810 ~]$ sqlplus "/as sysasm"
SQL*Plus: Release 23.0.0.0.0 – for Oracle Cloud and Engineered Systems on Wed Nov 27 12:57:14 2024
Version 23.5.0.24.07
Copyright © 1982, 2024, Oracle.  All rights reserved.
Connected to:
Oracle Database 23ai Enterprise Edition Release 23.0.0.0.0 – for Oracle Cloud and Engineered Systems
Version 23.5.0.24.07
SQL>

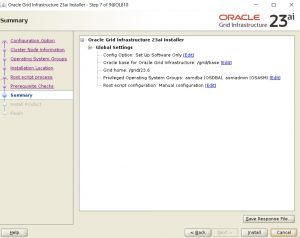

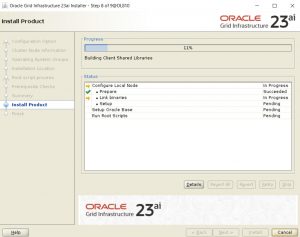

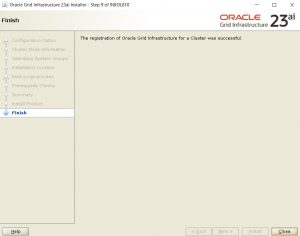

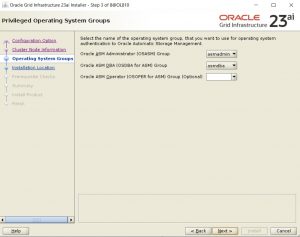

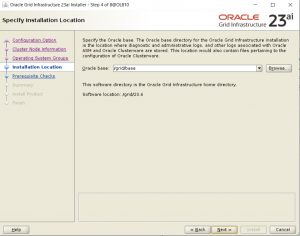

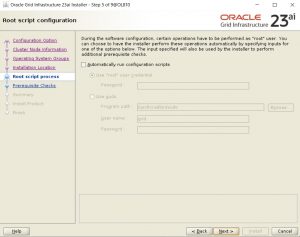

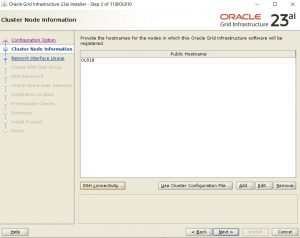

برای اعمال patch در ابتدا باید نرم افزار Grid Infrastructure نسخه 23.6 را به صورت software only نصب کنیم.

[root@OL810 ~]# /grid/23.6/root.sh
Performing root user operation.
The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /grid/23.6
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
To configure Grid Infrastructure for a Cluster or Grid Infrastructure for a Stand-Alone Server execute the following command as grid user:
/grid/23.6/gridSetup.sh
This command launches the Grid Infrastructure Setup Wizard. The wizard also supports silent operation, and the parameters can be passed through the response file that is available in the installation media.

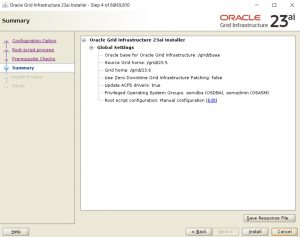

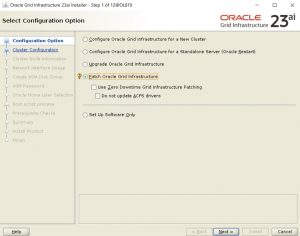

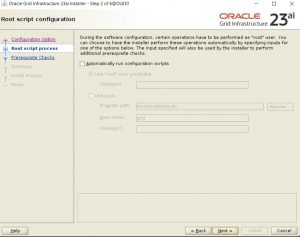

نرم افزار بدون خطا نصب شد. در مرحله بعد، مجددا gridSetup.sh را اجرا می کنیم و این بار با انتخاب Patch Oracle Grid Infrastructure بر روی 23.5 پچ 23.6 را اعمال می کنیم:

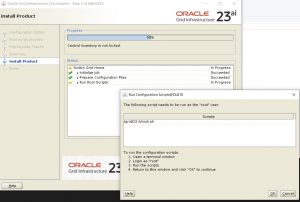

قدم نهایی برای اعمال کردن patch، اجرای اسکریپت root.sh است:

[root@OL810 ~]# /grid/23.6/root.sh
Performing root user operation.
The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /grid/23.6
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Executing command '/grid/23.6/perl/bin/perl -I/grid/23.6/perl/lib -I/grid/23.6/crs/install /grid/23.6/crs/install/roothas.pl  -dstcrshome /grid/23.6 -prepatch                           '
Using configuration parameter file: /grid/23.6/crs/install/crsconfig_params
The log of current session can be found at:
  /grid/base/crsdata/ol810/crsconfig/hapatch_2024-11-27_12-59-47AM.log
acfsutil info fs: ACFS-03036: no mounted ACFS file systems
2024/11/27 13:00:08 CLSRSC-347: Successfully unlock /grid/23.6
2024/11/27 13:00:08 CLSRSC-671: Pre-patch steps for patching GI home successfully completed.
Executing command '/grid/23.6/perl/bin/perl -I/grid/23.6/perl/lib -I/grid/23.6/crs/install /grid/23.6/crs/install/roothas.pl  -dstcrshome /grid/23.6 -postpatch'
Using configuration parameter file: /grid/23.6/crs/install/crsconfig_params
The log of current session can be found at:
  /grid/base/crsdata/ol810/crsconfig/hapatch_2024-11-27_01-00-09PM.log
2024/11/27 13:00:30 CLSRSC-329: Replacing Clusterware entries in file 'oracle-ohasd.service'
2024/11/27 13:01:44 CLSRSC-672: Post-patch steps for patching GI home successfully completed.

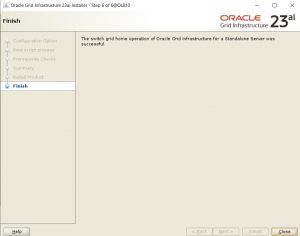

patch بر روی نرم افزار Grid Infrastructure اعمال شده و نسخه  Oracle Grid Infrastructure به 23.6 ارتقا پیدا کرده است:

[grid@OL810 ~]$ sqlplus "/as sysasm"
SQL*Plus: Release 23.0.0.0.0 - for Oracle Cloud and Engineered Systems on Wed Nov 27 13:04:06 2024
Version 23.5.0.24.07
Copyright (c) 1982, 2024, Oracle.  All rights reserved.
Connected to:
Oracle Database 23ai Enterprise Edition Release 23.0.0.0.0 - for Oracle Cloud and Engineered Systems
Version 23.6.0.24.10
SQL>
